Technical Specifications
| TYPE | Grade | Thickness (mm) | Tensile (Nm/g) | Density | BDV (Kv/mm) | Specific Properties |
|---|---|---|---|---|---|---|
| Kraft Paper | — | 1.5 | MD 192 CD 19 | 0.79 | 10.5 | General Purpose for Oil Filled Transformer |
| — | 2 | MD 59 CD 13 | 0.81 | 1.2 | ||
| — | 2.5 | MD 199 CD 19 | 0.83 | 10.3 | ||
| Aramide Paper (Nomex) | 410 | 2 | MD 43 XD 19 | 0.72 | 18 | Dry type application, High level electrical, chemical, thermal and mechanical property for different type usage |
| 411 | 5 | MD 18 XD 9 | 0.3 | 9 | ||
| Crepe Paper | — | 0.15–5 | As in Original Paper | 1.25–1.75 times kraft paper | 10.2 | Stretchable, suitable for rectangular winding applications |
| Parameter | Details |
|---|---|
| Conductor Type | Round Wire |
| Standards | EN, ASTM, DIN |
| Grade | EC Grade |
| Temper | Soft |

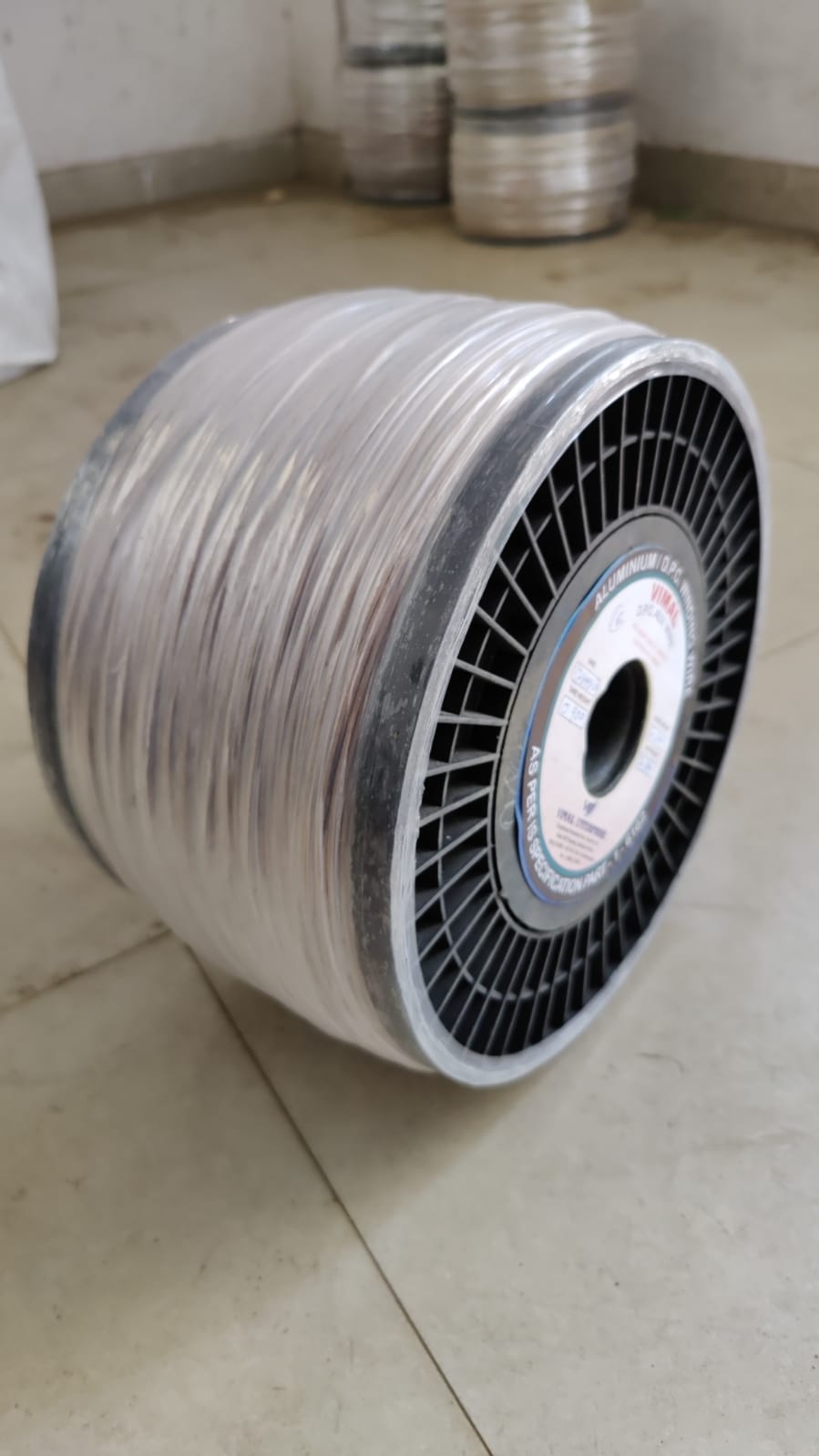

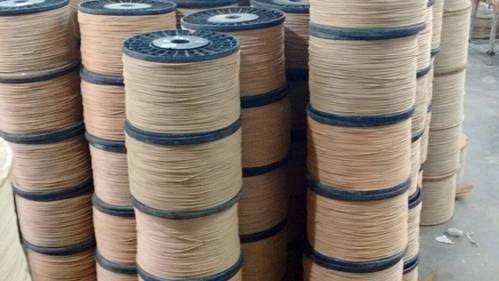

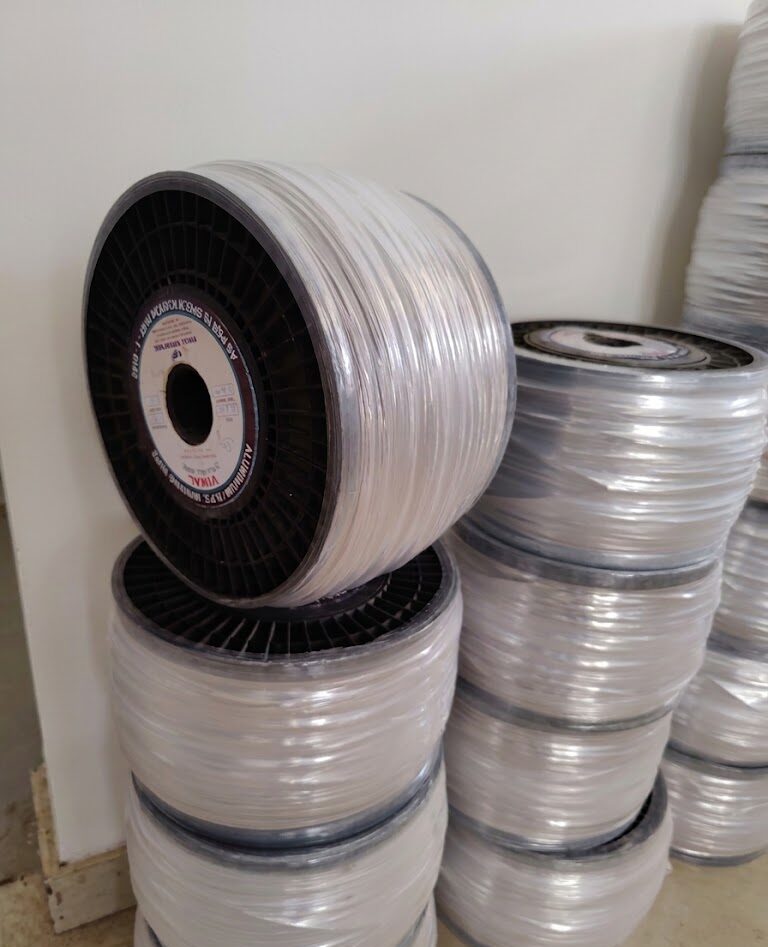

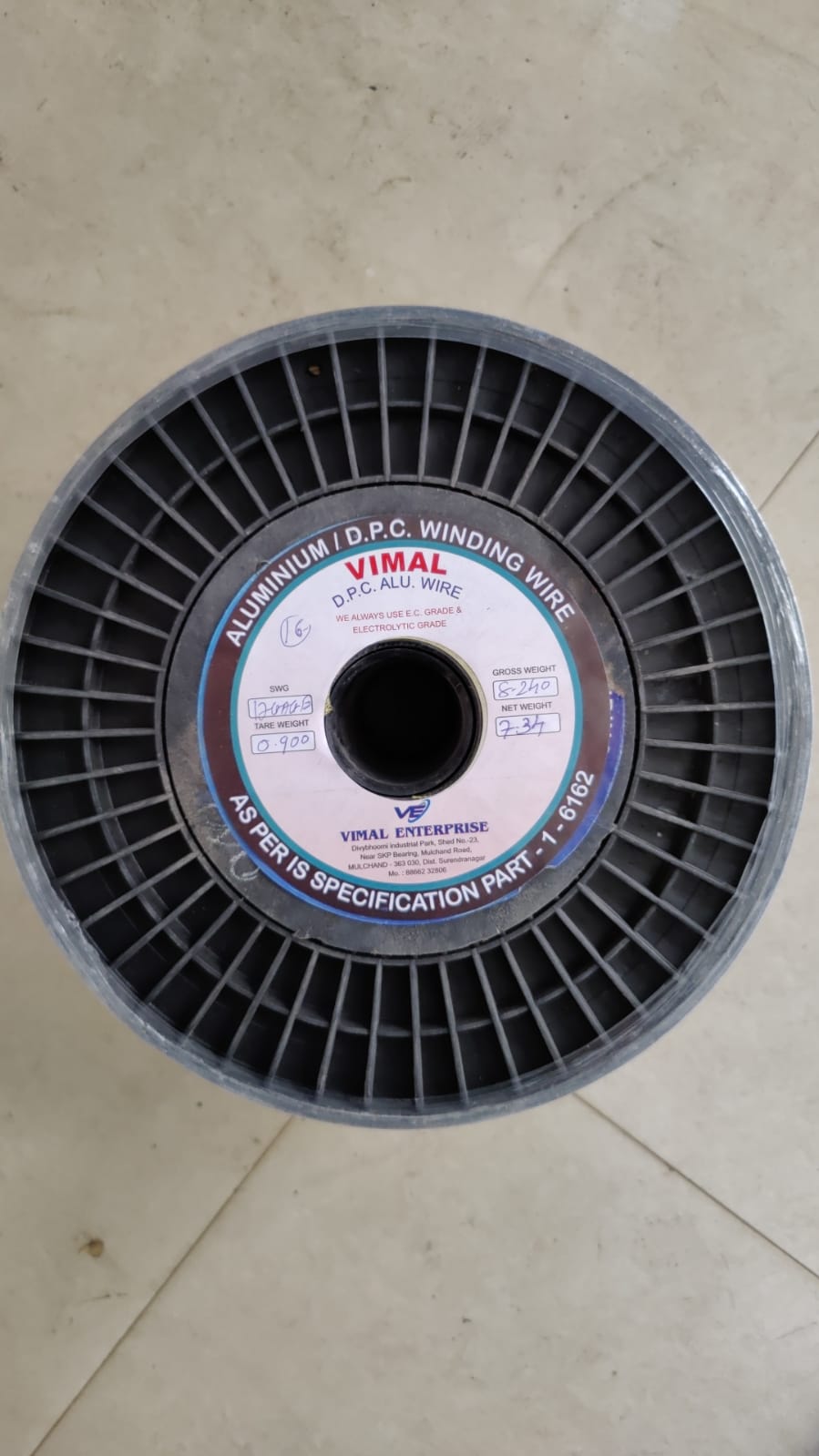

| Insulation Type | DPC (Double Paper Covered) |
| Paper Type | Kraft / Crepe |
| Number of Layers | Double Layer |
Size Range
| Dimension | Range |
|---|---|
| Diameter | 0.9 mm to 6 mm |
